18 Kw Steam Generator- Pro Series

Chrome Controller and Steam Head!
With 5 Year Warranty

For Commercial Use


Enjoy the wonders of a steam bath for commercial use and large residential steam showers with the Steamcore Pro-series. Bathe in the benefits and relieve pain and stiffness, cleanse and clear skin, not to mention burn calories and boosting your immune system.

Steamcore steam generators are engineered with high quality and durable components.Components that are carefully inspected and mechanically tested ensuring a relaxing steam each and every use.

Features:

• Surgical Stainless Steel boiler tank.
• Industrial large diameter low-density incoloy heating elements. (800 series)
• Automatic Rinse and Flush operation. - Factory installed
• SPA II Steamheads with aroma oil reservoir.
• Steam room temperature sensor.
• Stainless steel exterior body with serviceable heating elements.
• Super quiet operation.
• Fresh water after every use.
• 3 level water sensing operation of boiler tank.
• SSI Controller (chrome finish) (matching SPA II steamhead finishes):
  • Electronic digital control mounted inside or outside Steam Room.
  • Timer and temperature control with pause feature.
  • Low Voltage.
• State-of-the-art electronic steamer operations circuit board.
• Compact design.
• ASME pressure valve.
• Dual Auto and Manual Flush Valves.
• (Silver and Elegance Series) - factory installed
• Energy efficient (uses minimal amount of water to produce steam due to its compact design).
• Limited 5-year warranty.
• Optional Limited Lifetime Warranty with ‘Maintenance Program’.
• Available up to 600 volts - 36000 watts.
• Brass fill and drain valves
• 1 hour or 24 hour SSI keypad

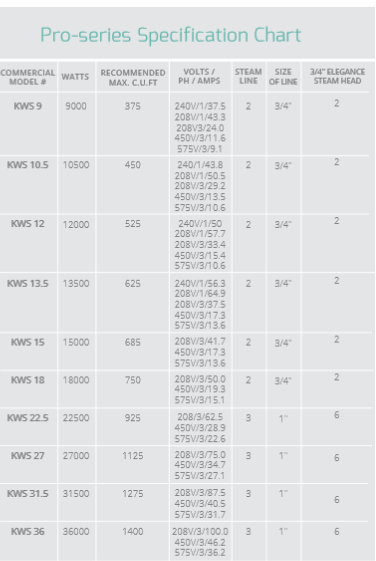

Specifications

• 18000 Watts  208V/3PH/50Amps; 450V/3PH/19.3Amps; 575V/3PH/15.1Amps
• 28"w x 15"h x 15"d
• Incoloy elements
• Tick-welded boiler to prevent any leaks
• Max room size 750 cubic feet
• UL, CSA, and CE certified

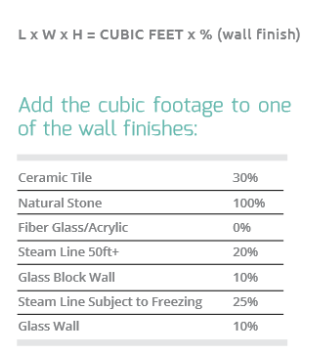

Sizing

Find the length, width and height of the room. Multiply the three measurements together to find basic square footage.

Multiply the basic square footage with the wall finish. The sum of the basic square footage and the wall finish is your required max volume. If there is any doubt it is encouraged to go for the next larger size.
